Fast Pitch® riser system

Fast Pitch® riser system

A whole new way to tank
where speed meets precision

Accelerate your installation

With our easy-to-use, stackable riser system, your buried tank installation will go faster than ever. No cutting, no tools – just stack, twist, lock and repeat.

Refine your installation

Once your Fast Pitch risers are set, insert and adjust your cover adapter to match finish grade with no unachievable dimensions. Adjust the cover adapter up to 5” or tilt 5 degrees in any direction for a perfectly flush-with-grade finish cover.

Fast pitch installation

Watch Grahm install the Fast Pitch risers and cover adapter.

For step-by-step instructions, see the Fast Pitch installation page.

Patent-Pending Design

What's new

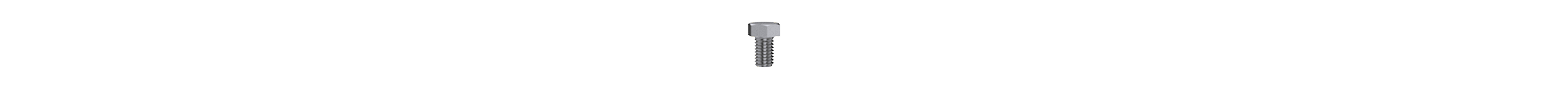

HEX BOLT: Stainless steel center bolt fastens through the temporary cover to the Safety Star insert.

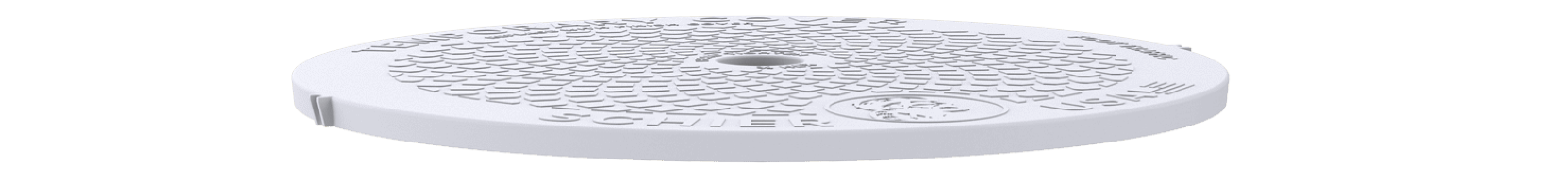

TEMPORARY COVER: Takes all the dings, scrapes and concrete residue that comes with commercial plumbing installations. Replace with a finish cover after the pad is poured.

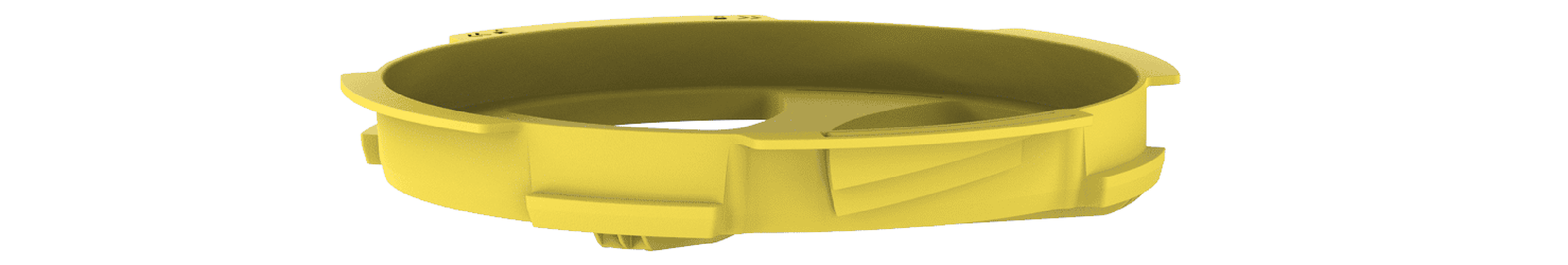

SAFETY STAR®: Improved access restrictor locks into the cover adapter and features a stainless steel threaded insert to secure the temporary and pedestrian covers.

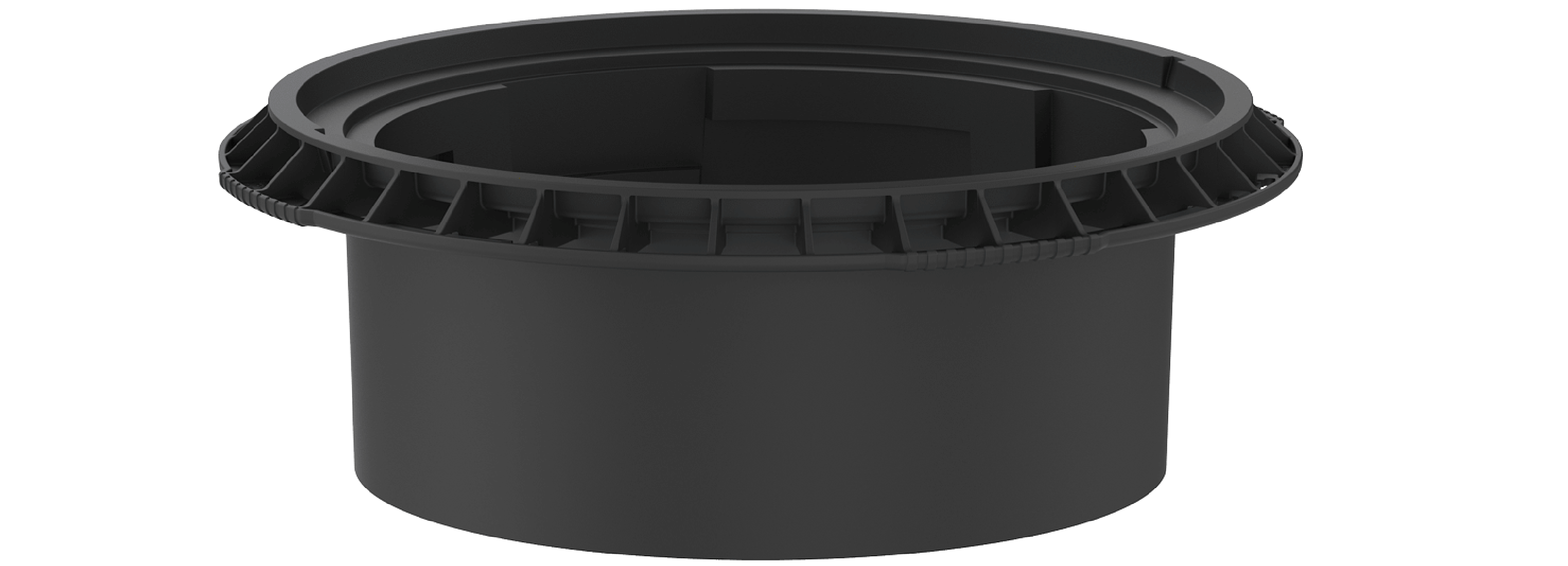

COVER ADAPTER: Redesigned to lock in the Safety Star® and single bolt covers. The flange features concrete flow channels to reinforce a stable installation.

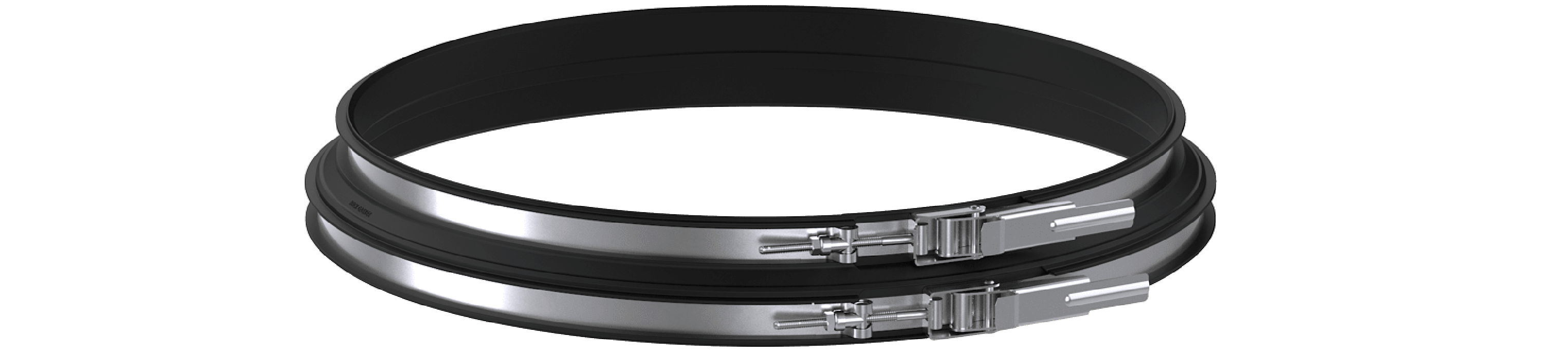

NECK GASKET WITH BAND CLAMPS: Gasket connects the cover adapter to the top riser. Captured band clamps feature adjustable toggle latches for quick and easy installation without tools.

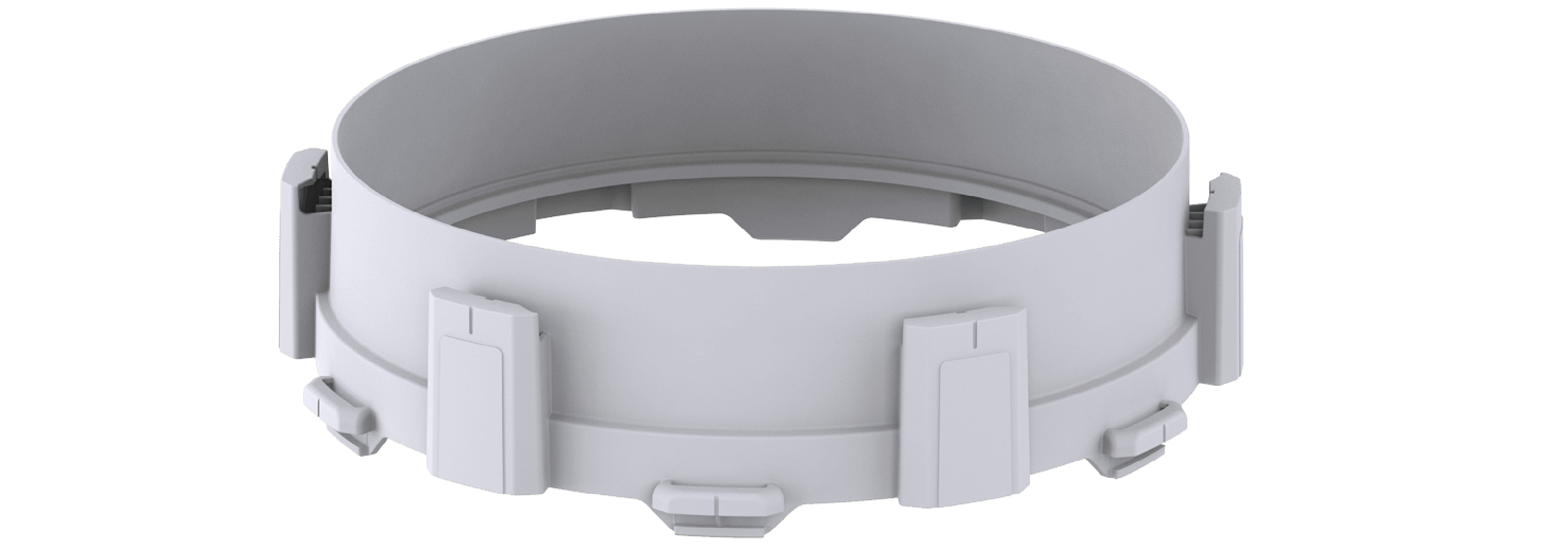

FAST PITCH RISER: Each riser includes a heavy-duty gasket and provides 5" of height, up to 17 units per cover stack. Stack, twist, lock and repeat to desired height.

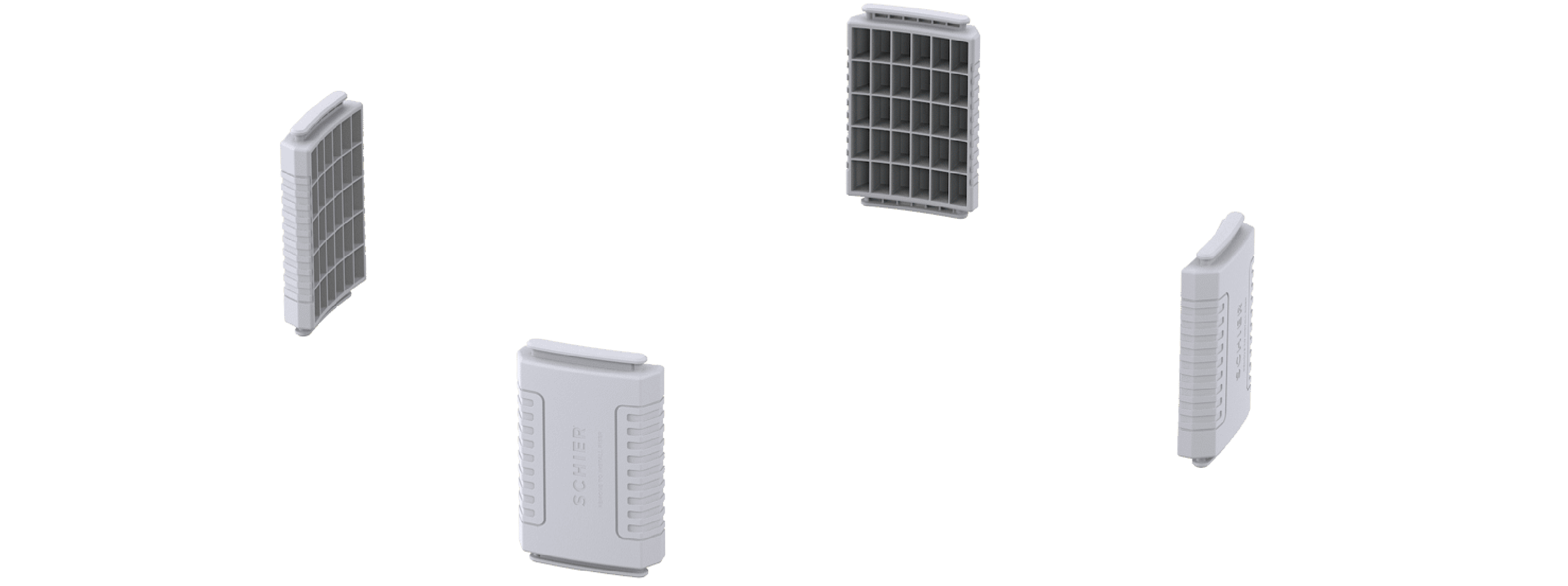

STANDOFFS: Provide support for the cover adapter while in transit and function as cover adapter tie-down supports for above grade installations.

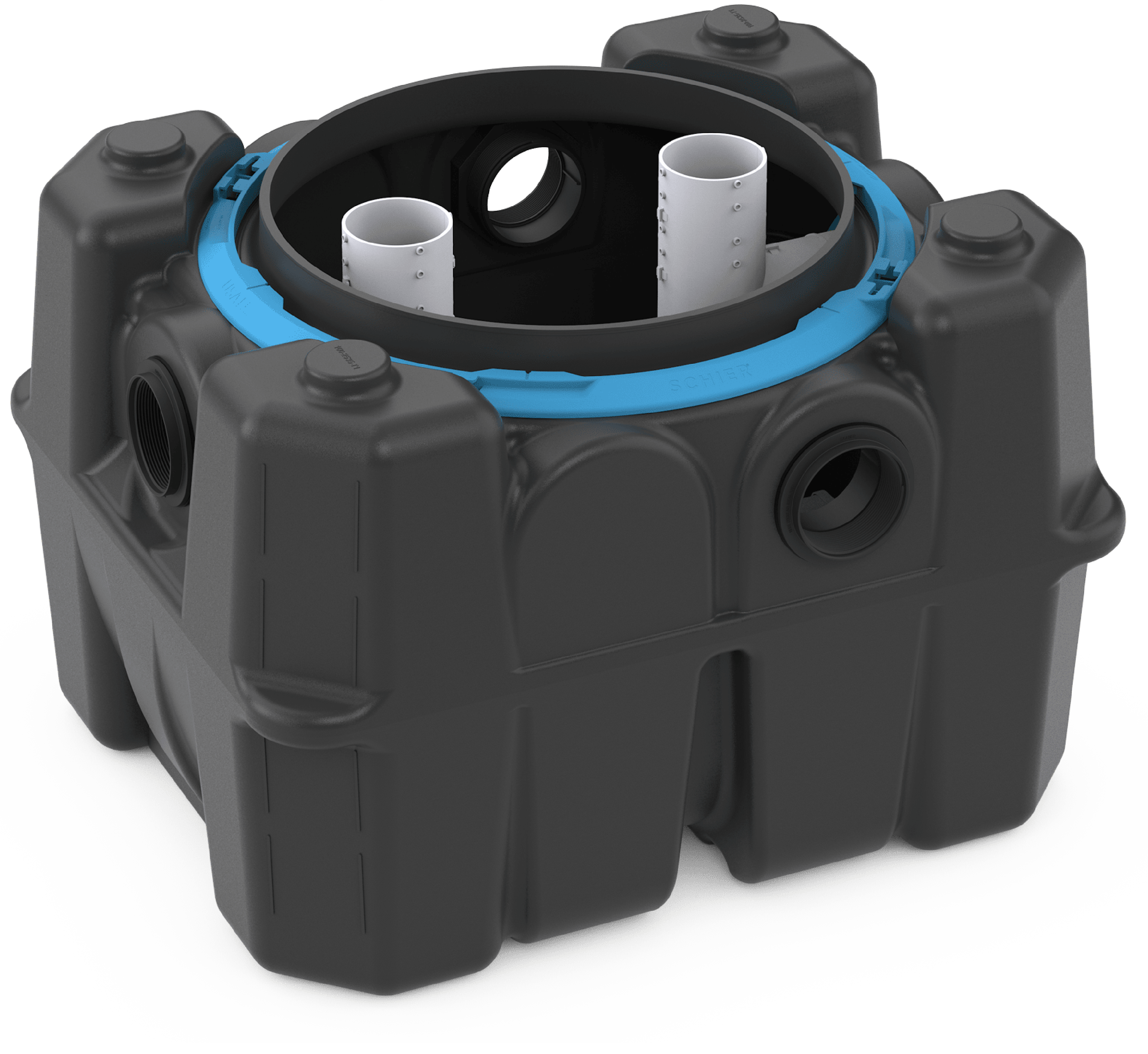

TANK RING: Ring includes locking slots for attaching standoffs or the first Fast Pitch® riser. Rings are color-coded by tank type for easy identification.

SUNFLOWER COVERS

As a nod to our home state of Kansas and to elevate the final aesthetic, our new cover suite incorporates a Sunflower motif and more helpful callouts.

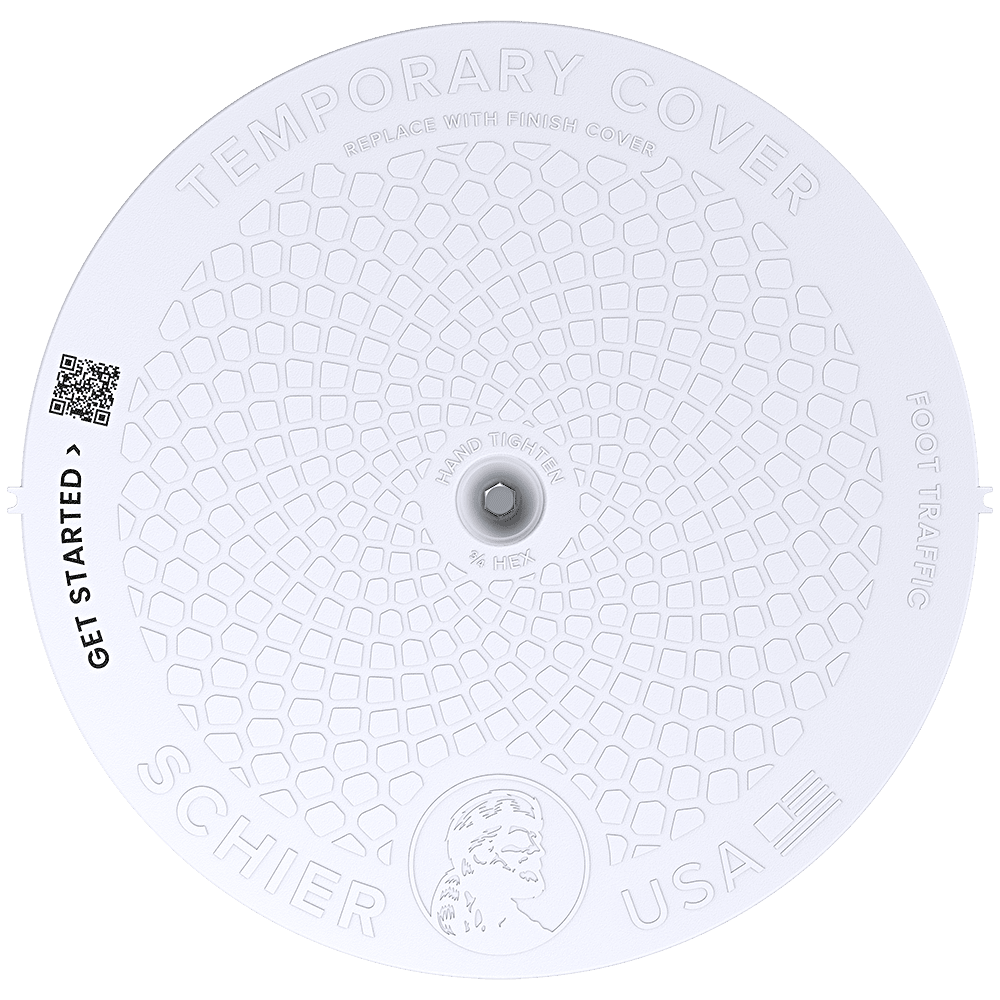

Temporary cover

This “jobsite only” cover ships standard with all tanks and must be replaced during final installation with either the pedestrian cover or traffic cover. A molded-in QR code takes the installer to an installation tips web page.

Pedestrian cover

The P24-GI is made of injection molded polypropylene, provided with a sealing gasket and a single stainless steel center bolt. Choose this option for above grade or buried indoor installations and outdoor installations for cover load ratings up to 2,000 pounds.

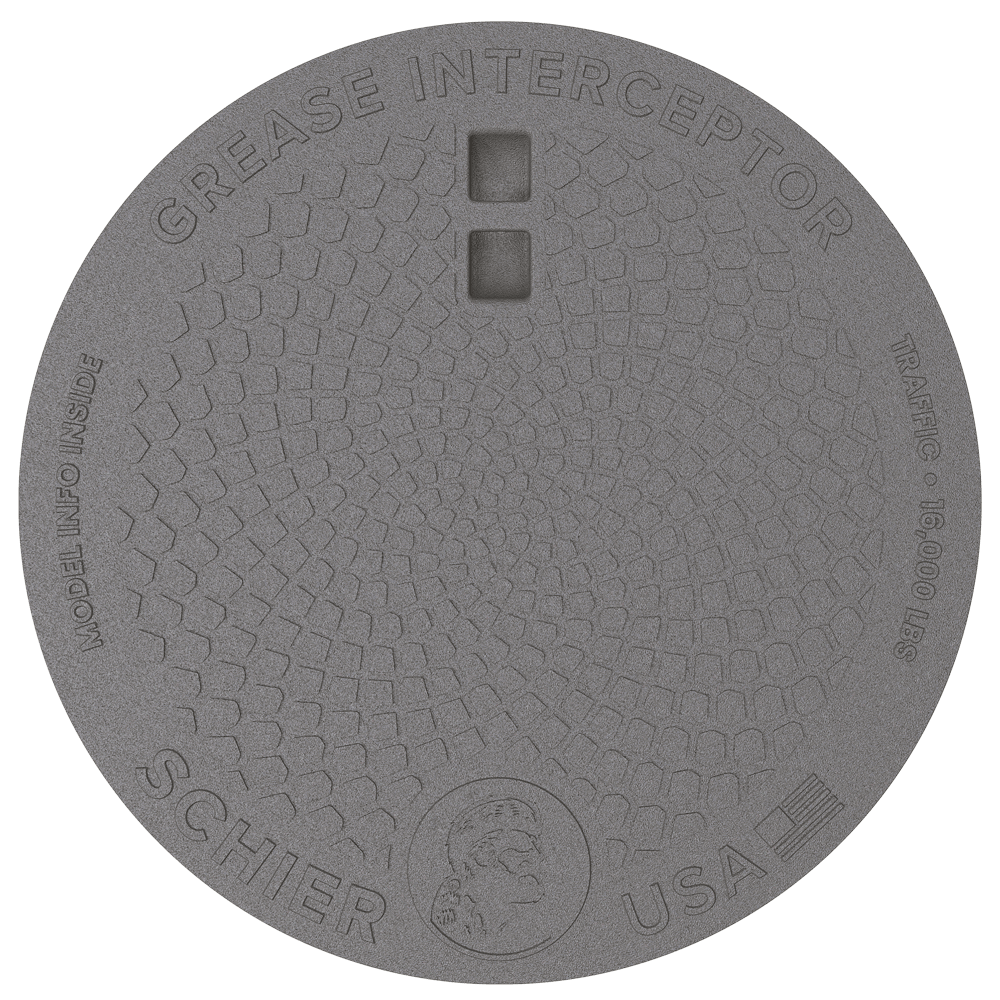

Traffic cover

The T24-GI is made of cast iron, provided with a sealing gasket and is pickable from either of the two slots on the cover adapter. Choose for buried indoor installations or outdoor installations where H-20 loads are required.

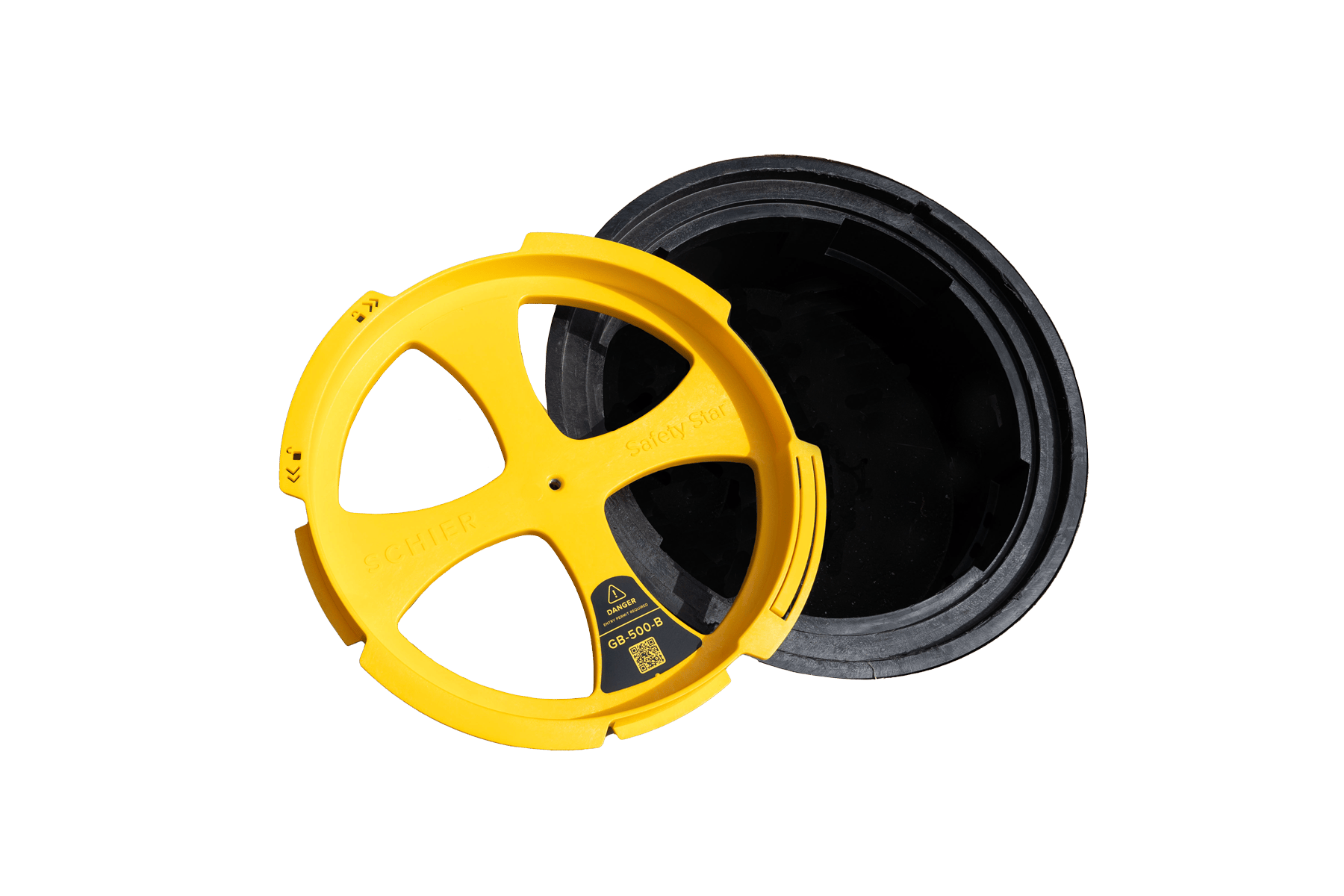

Safety star®

Safety Star has been redesigned to meet the standards of our new Fast Pitch riser system. It includes better structure, a molded-in center nut to fasten the temporary and pedestrian covers, locking ramp and tank product identification.

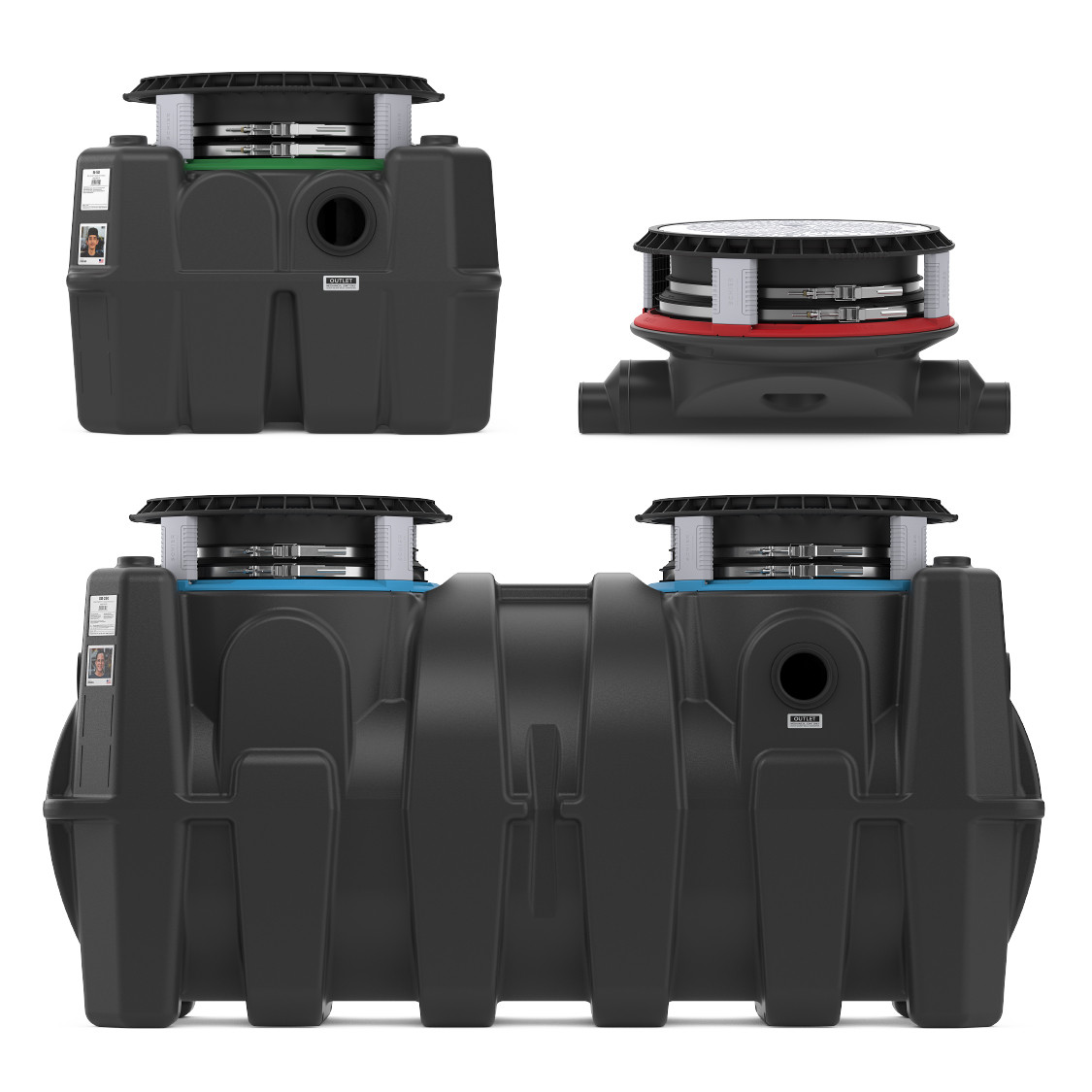

Tank ring colors

We've incorporated new tank ring colors to help differentiate our three tank categories: grease interceptors, solids interceptors and inspection ports.

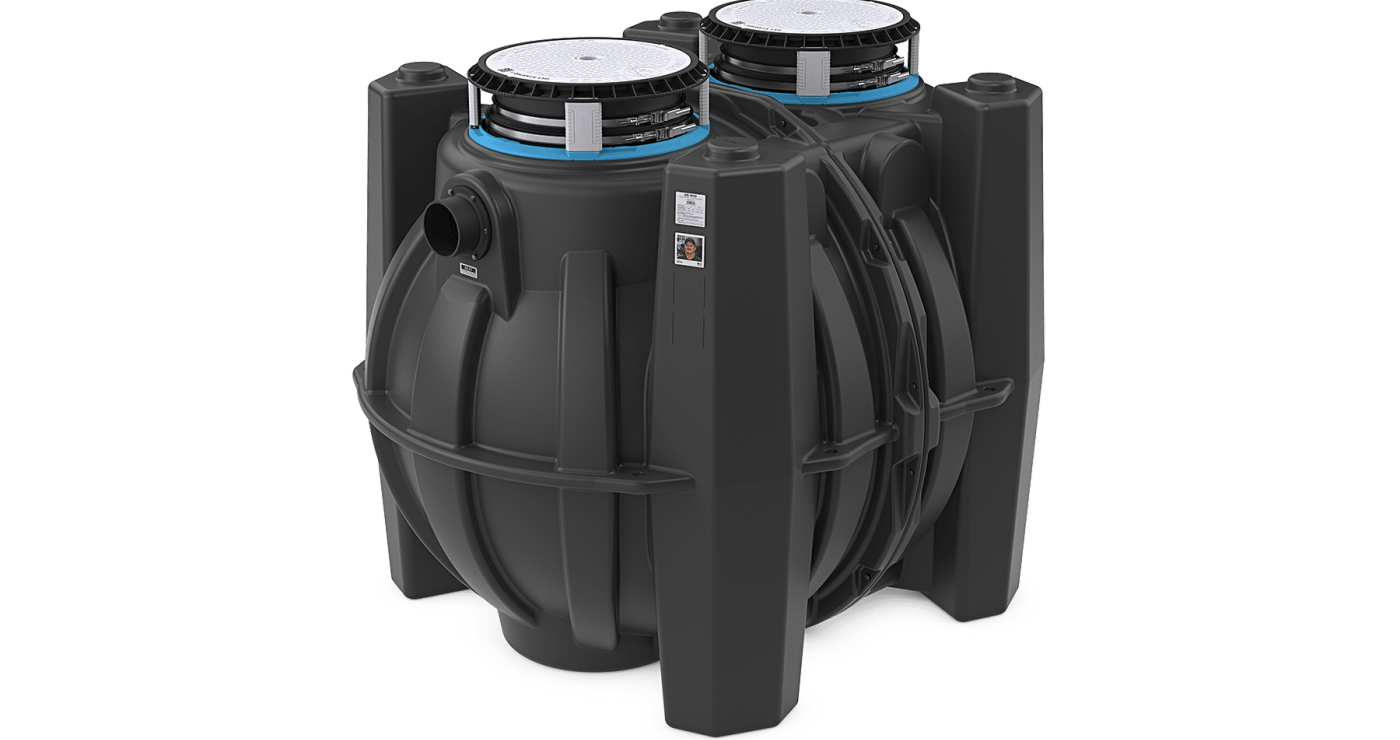

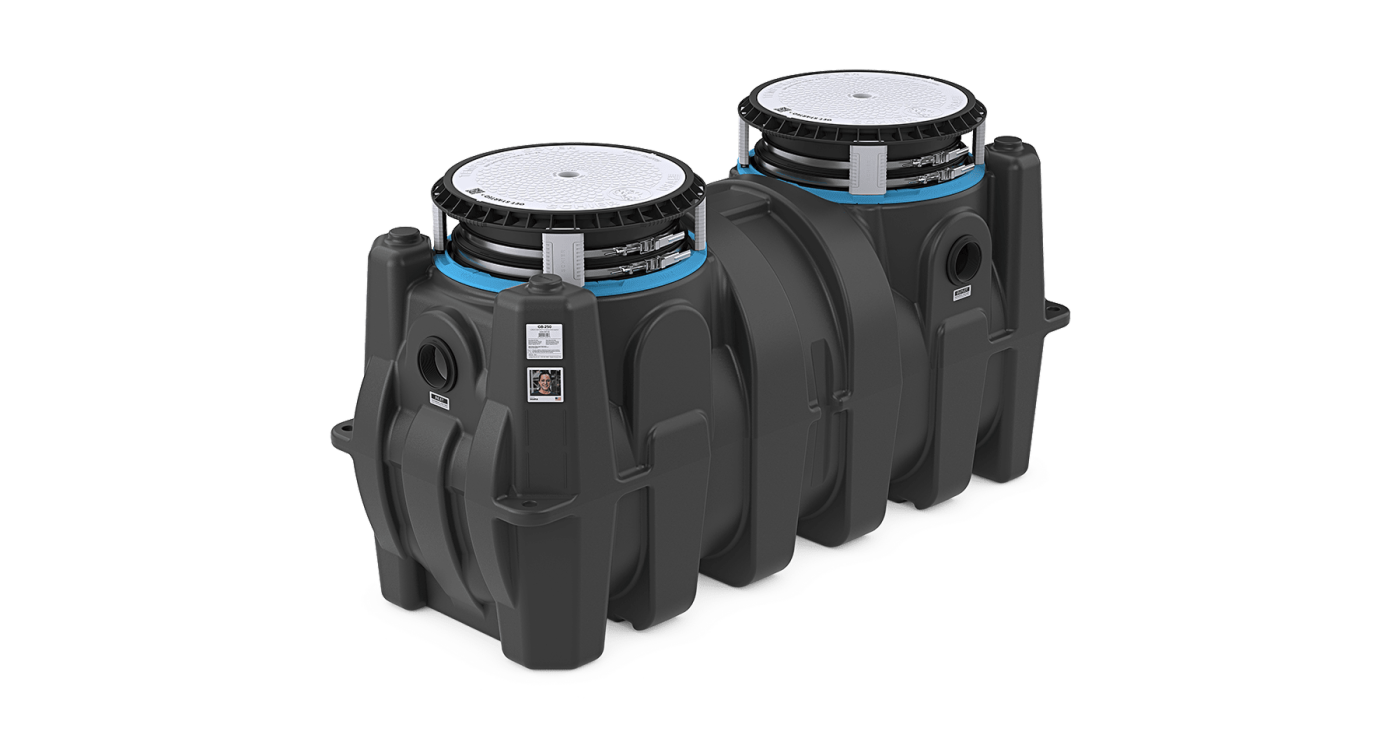

Blue - Great Basin® grease interceptors with 24” covers

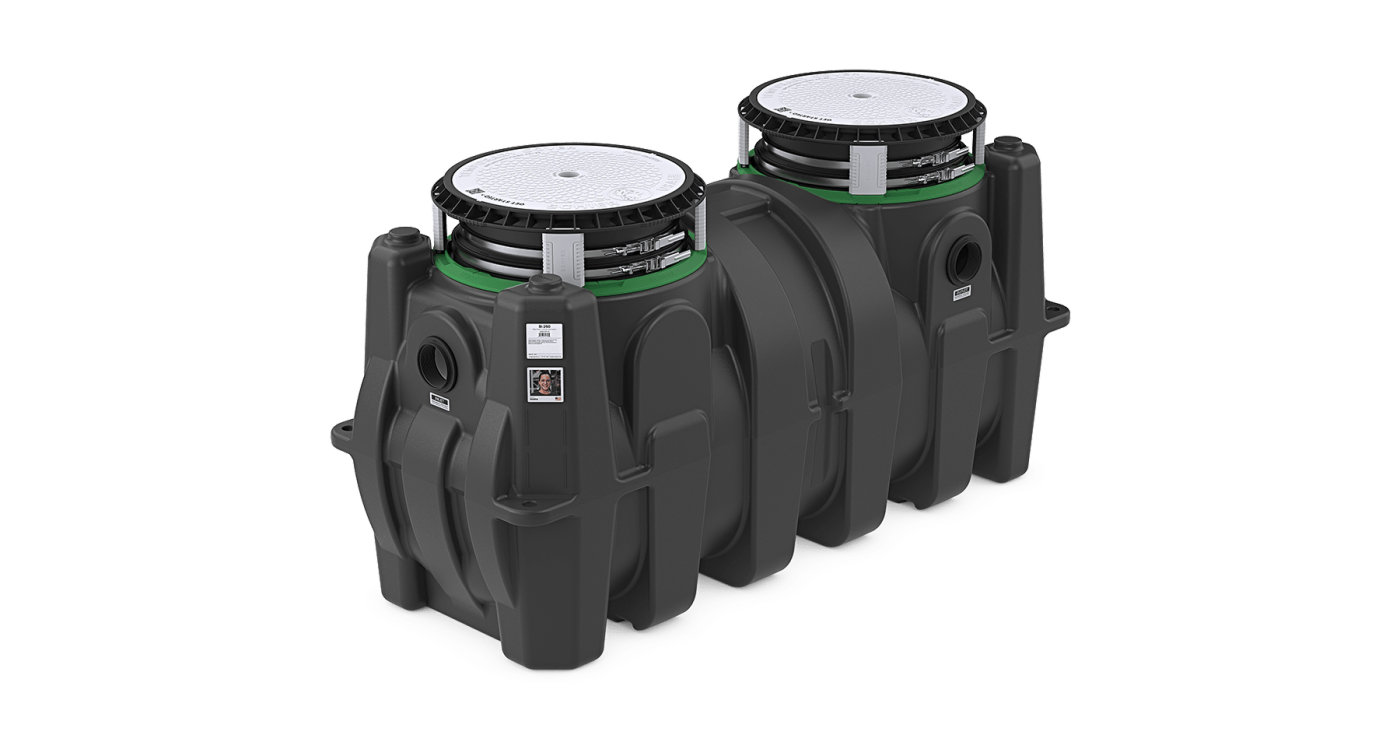

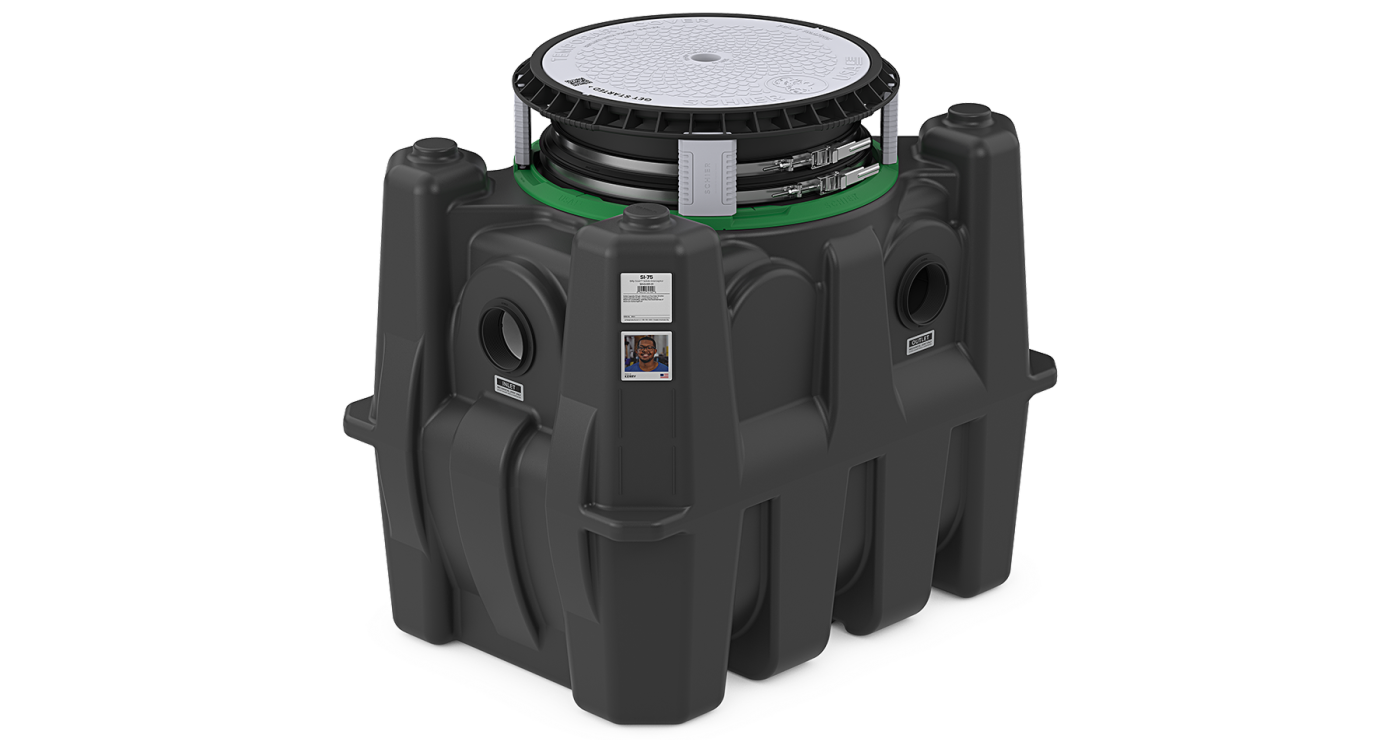

Green - Billy Goat® solids interceptors with 24” covers

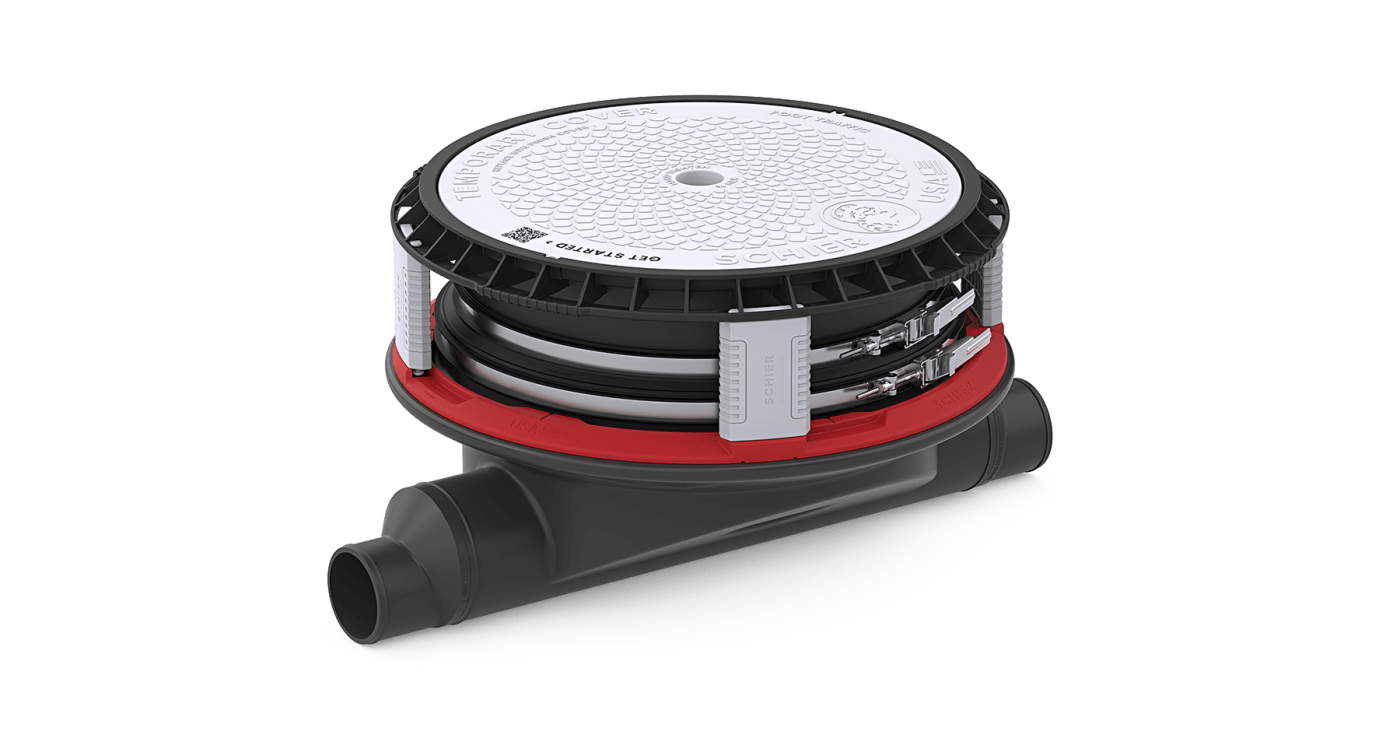

Red - Sewer Viewer® inspection ports with 24” covers

IMPROVED LABELING FOR IDENTIFICATION, INSTALLATION AND MAINTENANCE

.

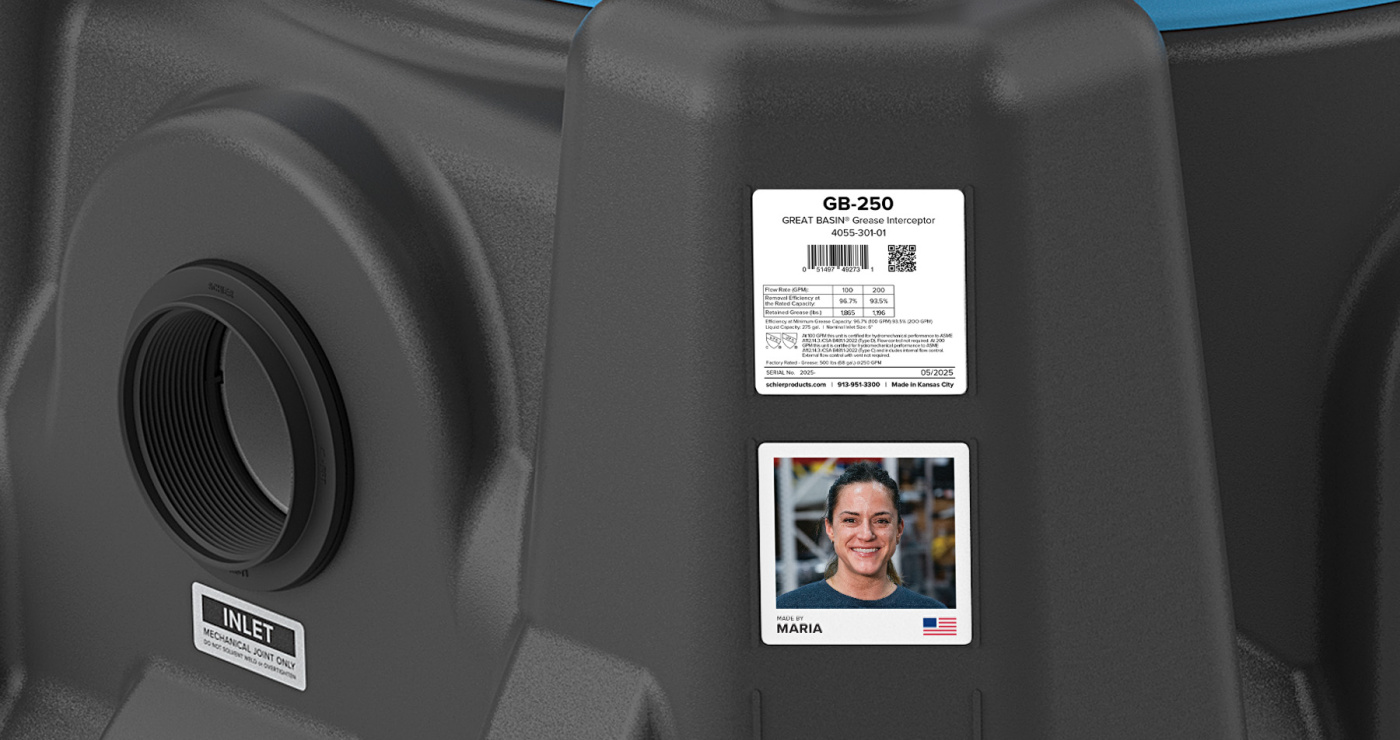

PRODUCT ID LABEL

The product ID label on each tank provides tank identification, ratings and a QR code takes you to the product page.

.

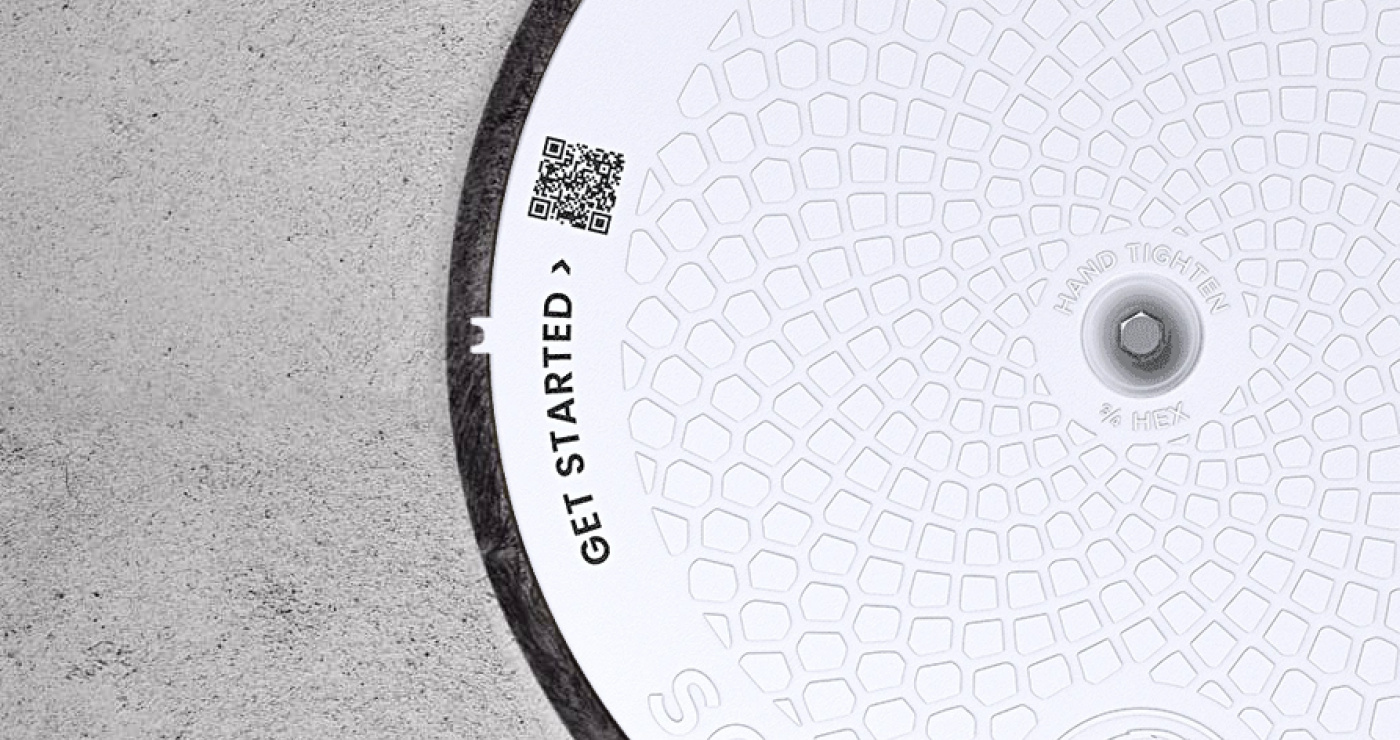

TEMP COVER QR CODE

The standard temporary cover includes a molded-in QR code that takes the installer to an installation tips web page.

.

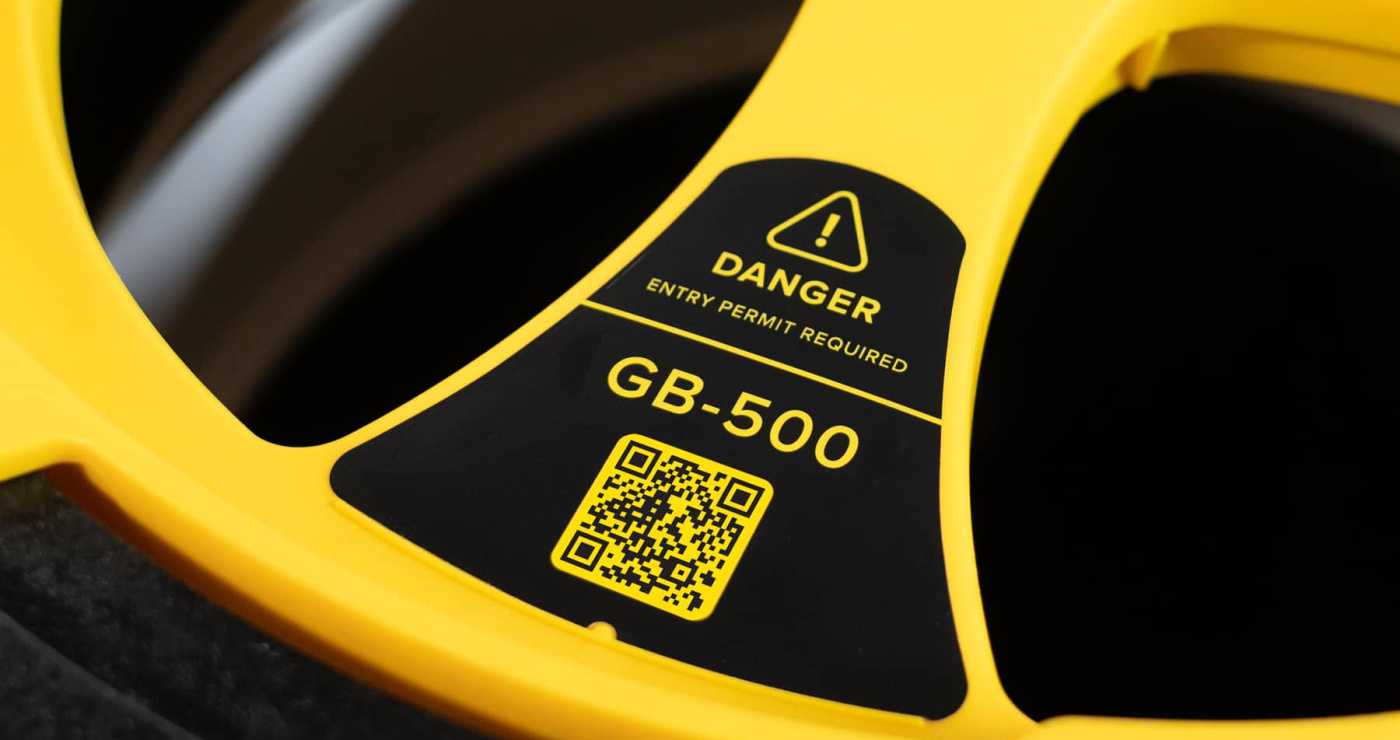

SAFETY STAR MODEL ID

The Safety Star label features the model name, for easy identification post-install, as well as a QR code that takes you to the product page.

Compatible models

.

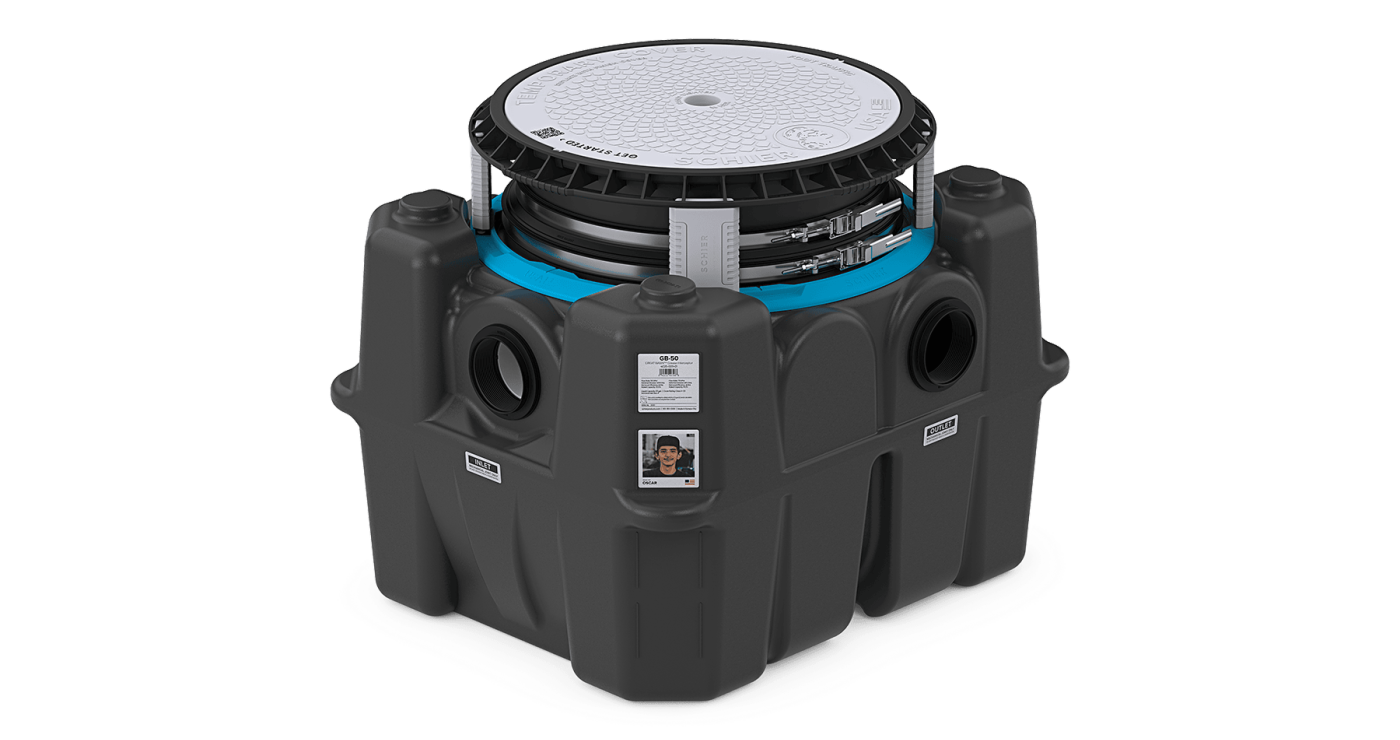

GB-50

.

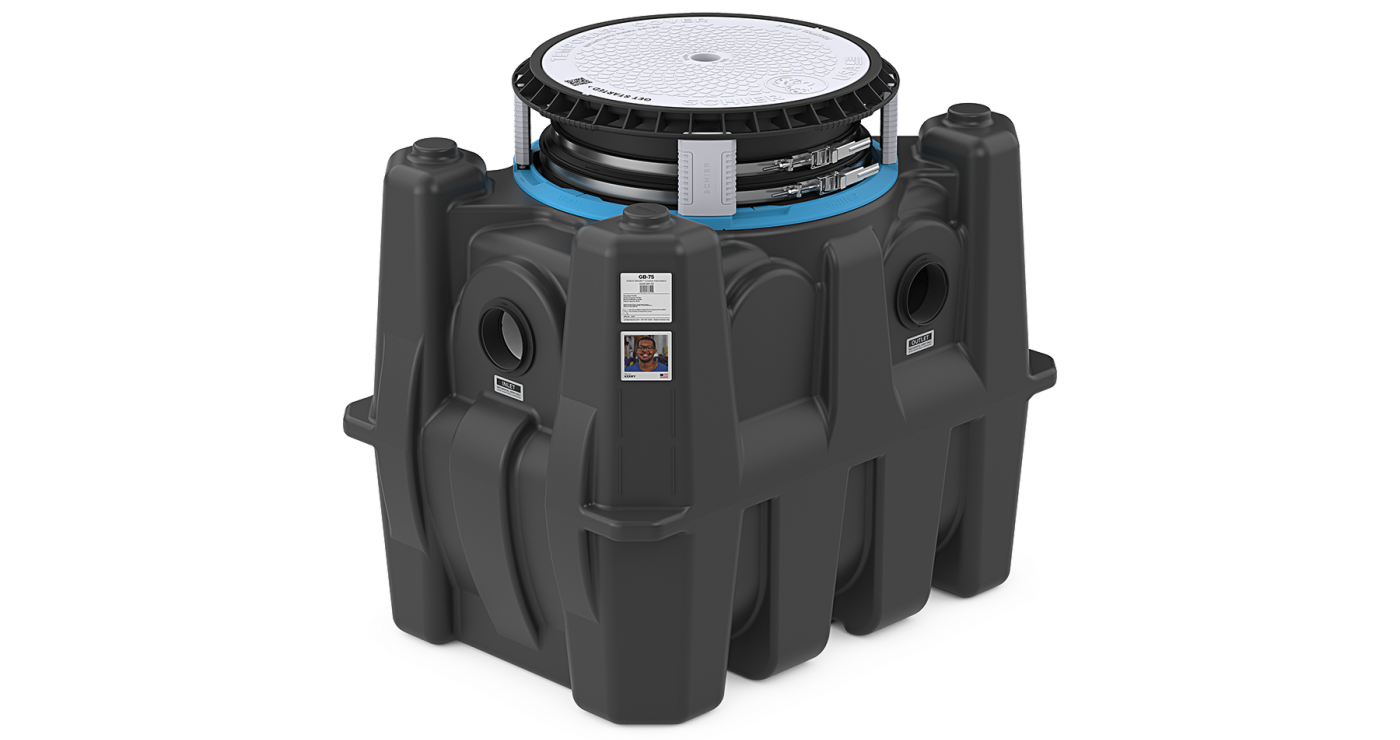

GB-75

.

GB-250

.

GB-500

.

GB-1000

.

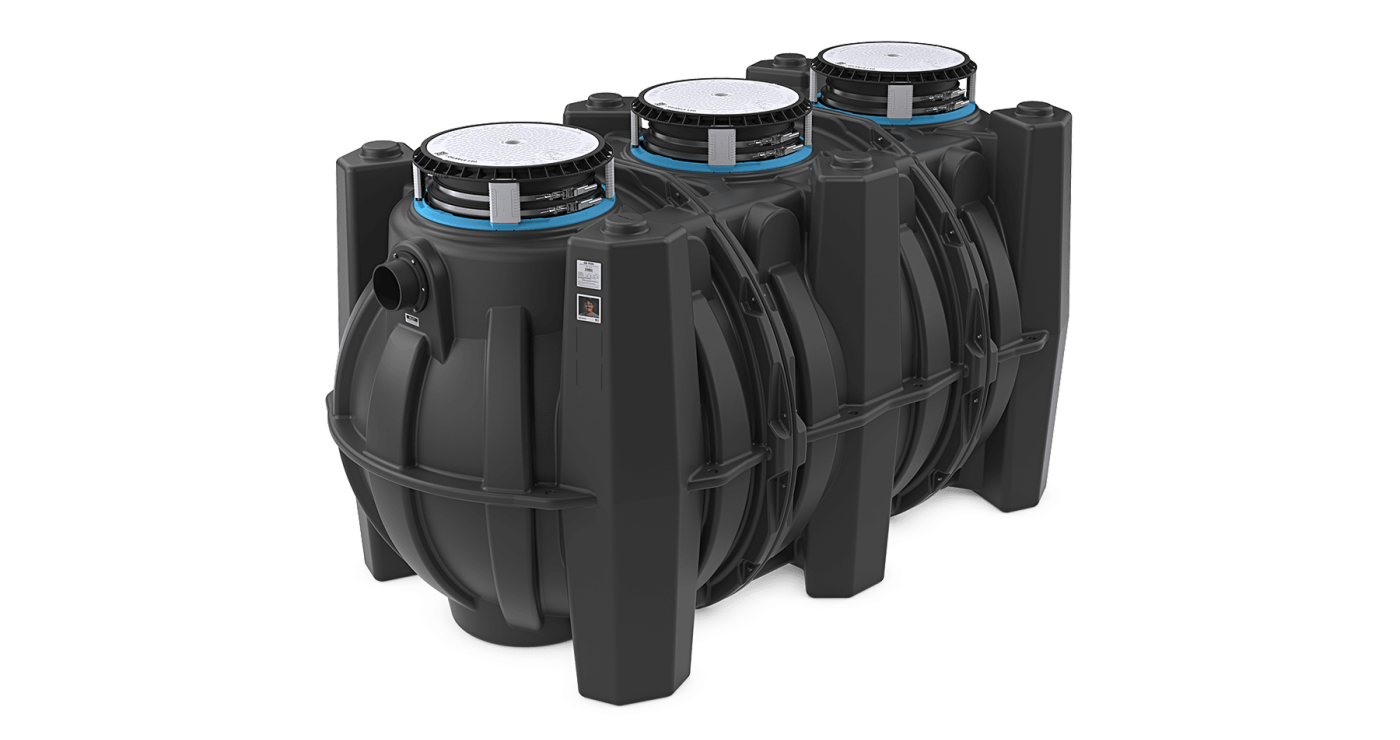

GB-1500

.

SI-50

.

SI-75

.

SI-250

.

SI-500

.

SV24

.

SV24-O
