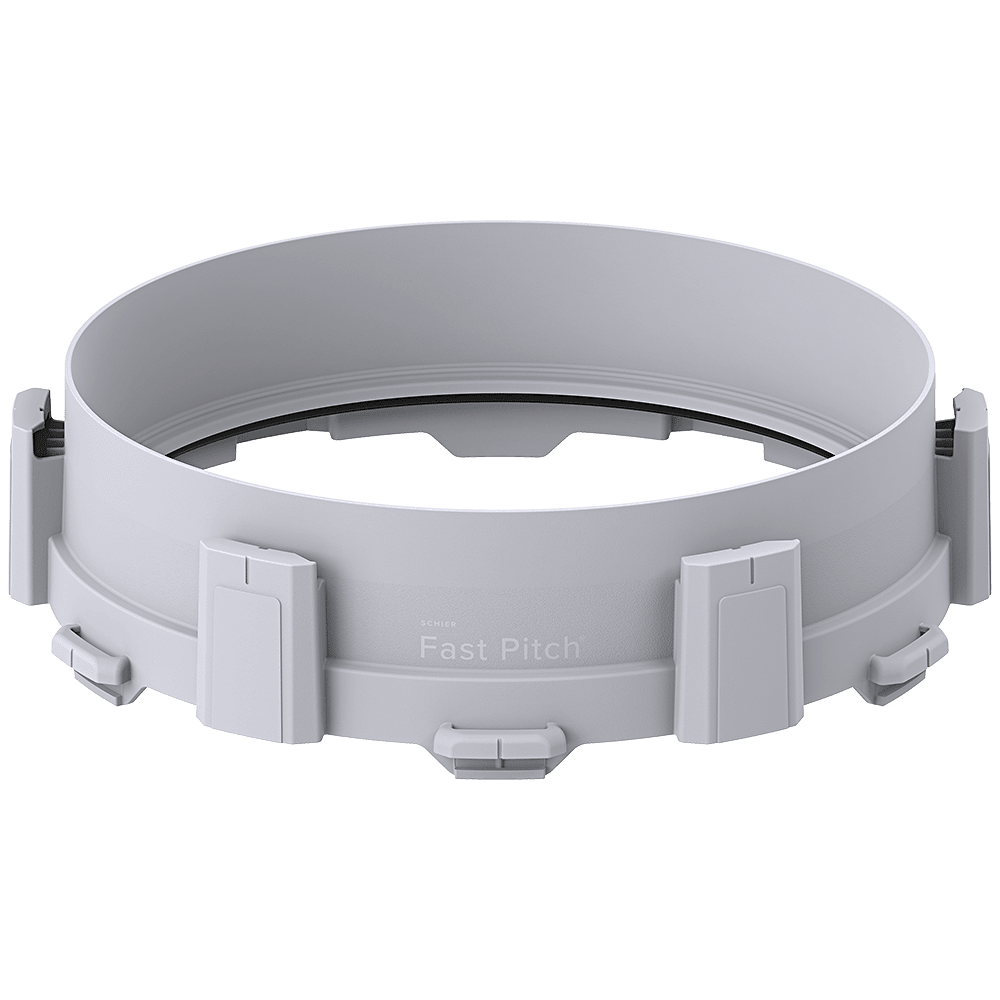

FP24 Fast Pitch Riser

FP24

Riser

FP24

Online: $117.00

List: $180.00

Buy Now

Product Description

Fast Pitch® riser for buried indoor/outdoor models with 24" covers

ACCELERATE YOUR INSTALLATION

With the Fast Pitch riser system, your buried tank installation will go faster than ever. No cutting or tools necessary. Stack, twist and lock each 5" riser to quickly reach the desired height. Choose Fast Pitch to eliminate job site delays while waiting for custom-built risers, ensuring projects are completed on time and within budget.

Features:

  • Lightweight, durable polyethylene

  • Heavy duty gasket for tight seal

  • Intuitive twist and lock design

  • Stack a maximum of 17 FP24 risers

  • Risers sold individually

Need Documentation?
Learn More

Fast pitch installation

Watch Grahm install the Fast Pitch risers and cover adapter.

For step-by-step instructions, see the Fast Pitch Installation page.
CLICK HERE

Refine your installation

Once your Fast Pitch risers are set, insert and adjust your cover adapter to match finish grade with no unachievable dimensions. Adjust the cover adapter up to 5” or tilt 5 degrees in any direction for a perfectly flush-with-grade finish cover.

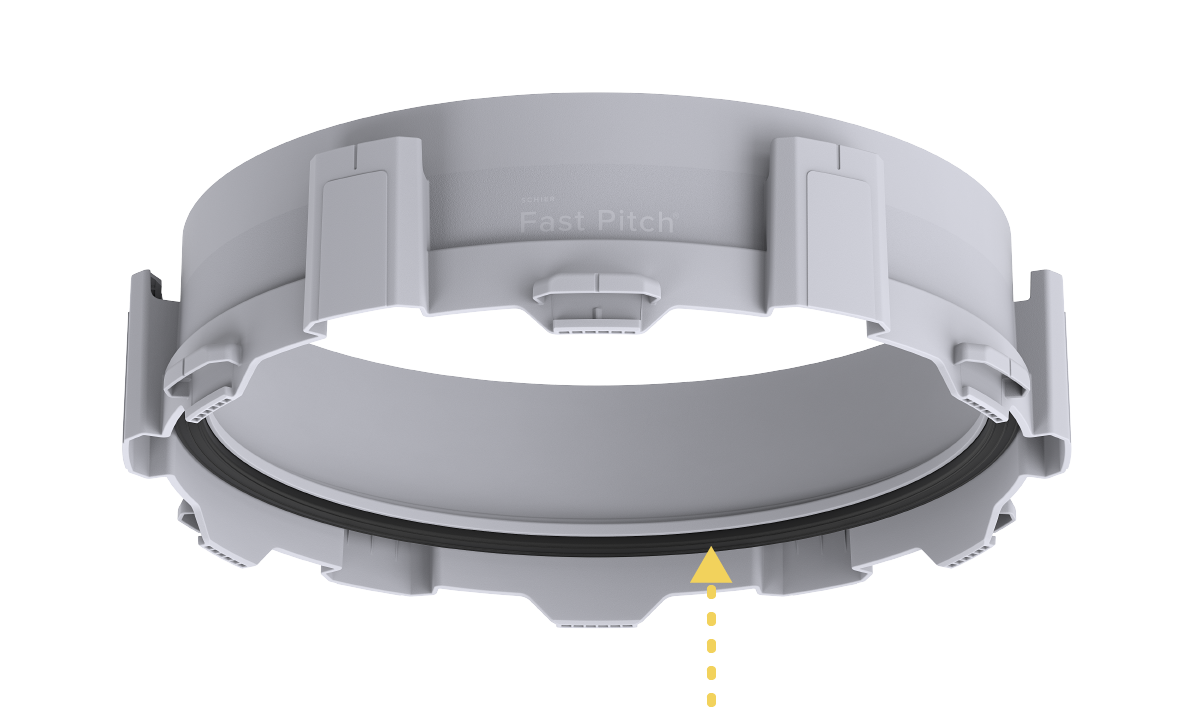

FP24 riser gasket

A built-in gasket ensures an air and water-tight seal for integrity of the riser system and overall installation.

.

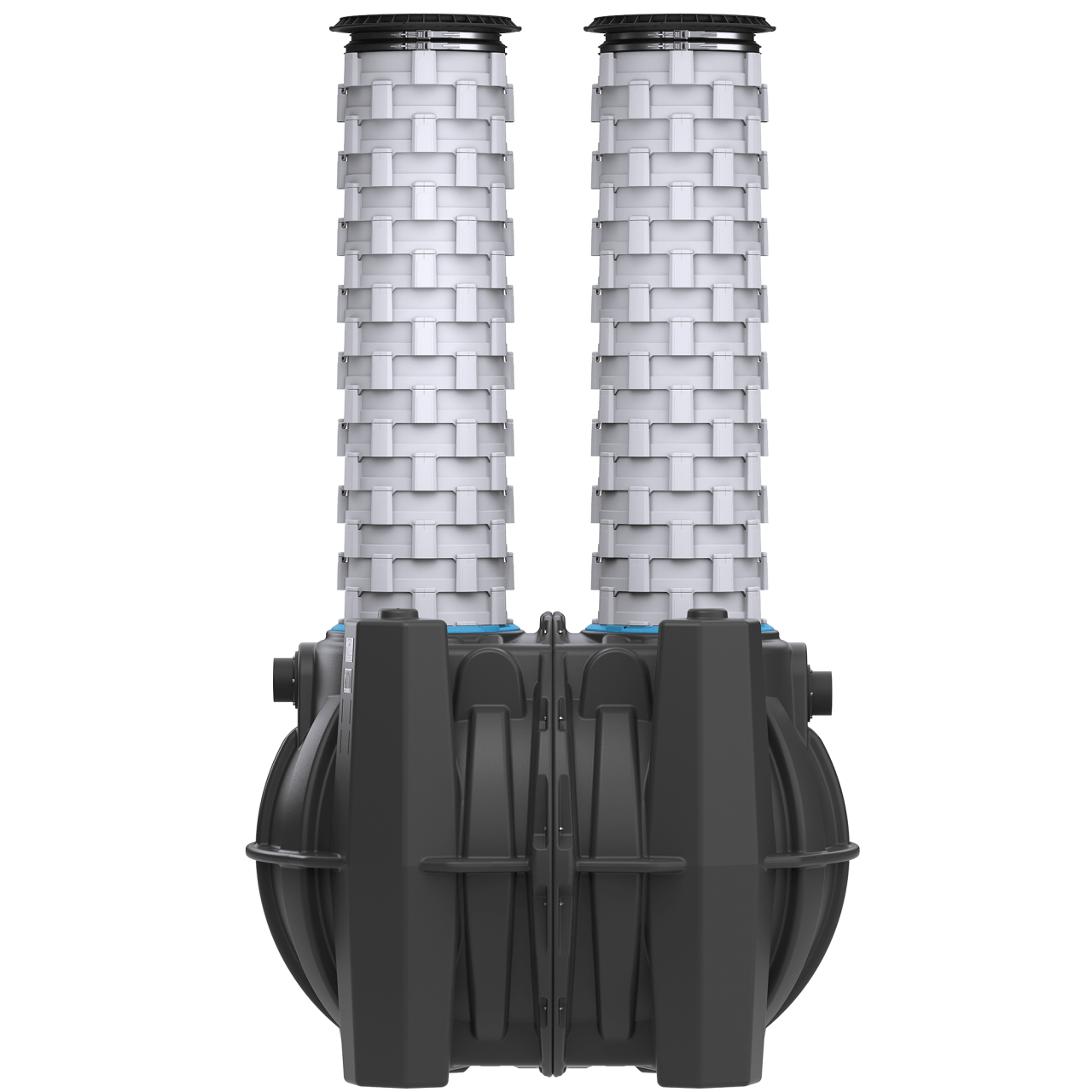

Maximum riser height

Stack the FP24 risers up to 17 units per cover stack (96" maximum from top of tank shoulder). Stack, twist, lock and repeat to the desired height.

SHIPPING

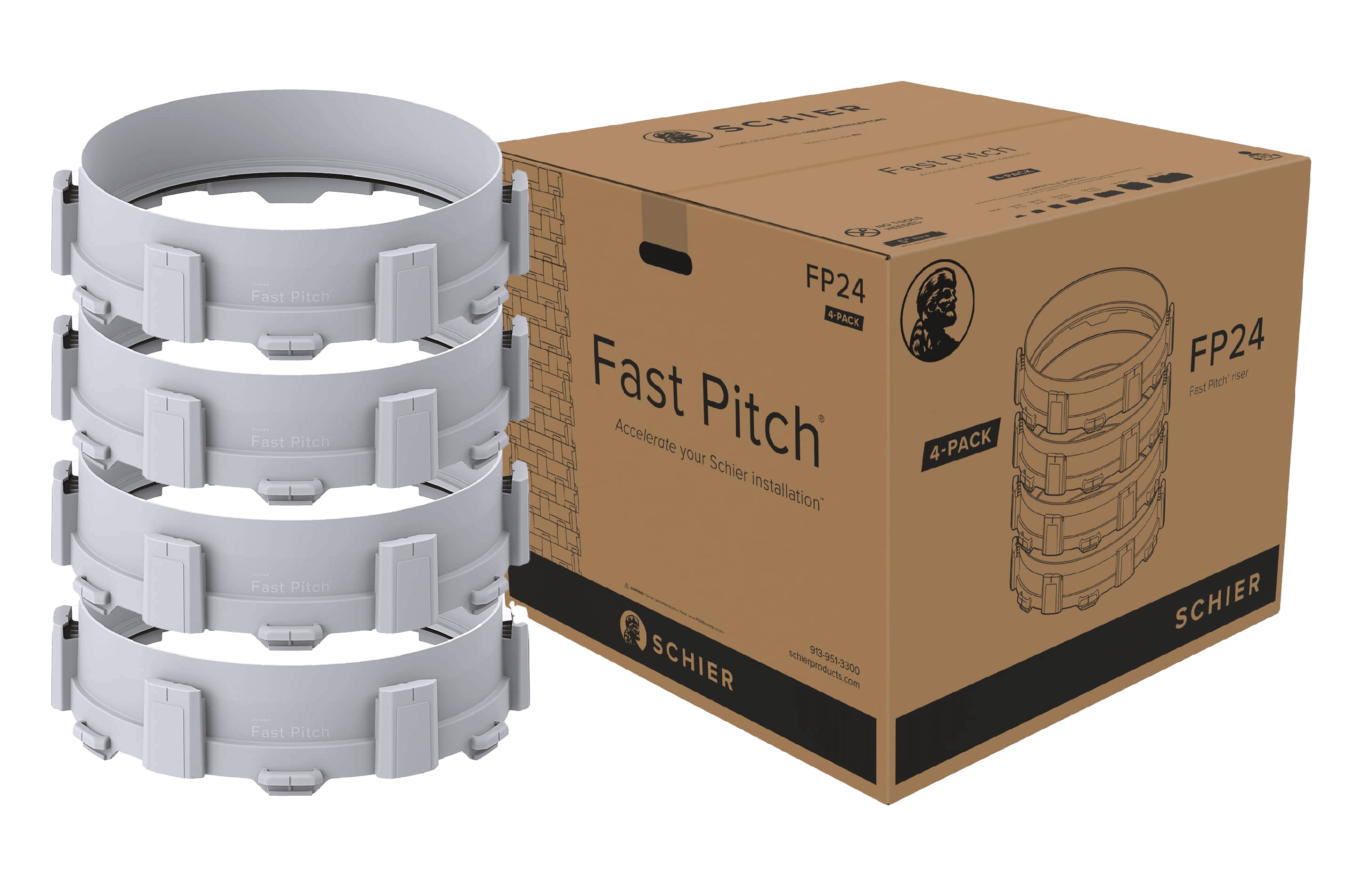

The FP24 risers are sold individually, but based on quantity, you may receive a case that consists of 4 risers.

Compatible Products

GB-50 product image
439 lbs at 50 GPM
287 lbs at 75 GPM
GB-75 product image
861 lbs at 75 GPM
GB-250 product image
1,895 lbs at 100 GPM
1,196 lbs at 200 GPM
GB-500 product image
3,048 lbs at 100 GPM
GB-1000 product image
5,495 lbs at 100 GPM
4,959 lbs at 200 GPM
GB-1500 product image
10,061 lbs at 100 GPM
9,446 lbs at 200 GPM
SI-50 product image
53 gal
SI-75 product image
109 gal
SI-250 product image
262 gal
SI-500 product image
457 gal
SV24 product image
SV24-O product image

Frequently Asked Questions

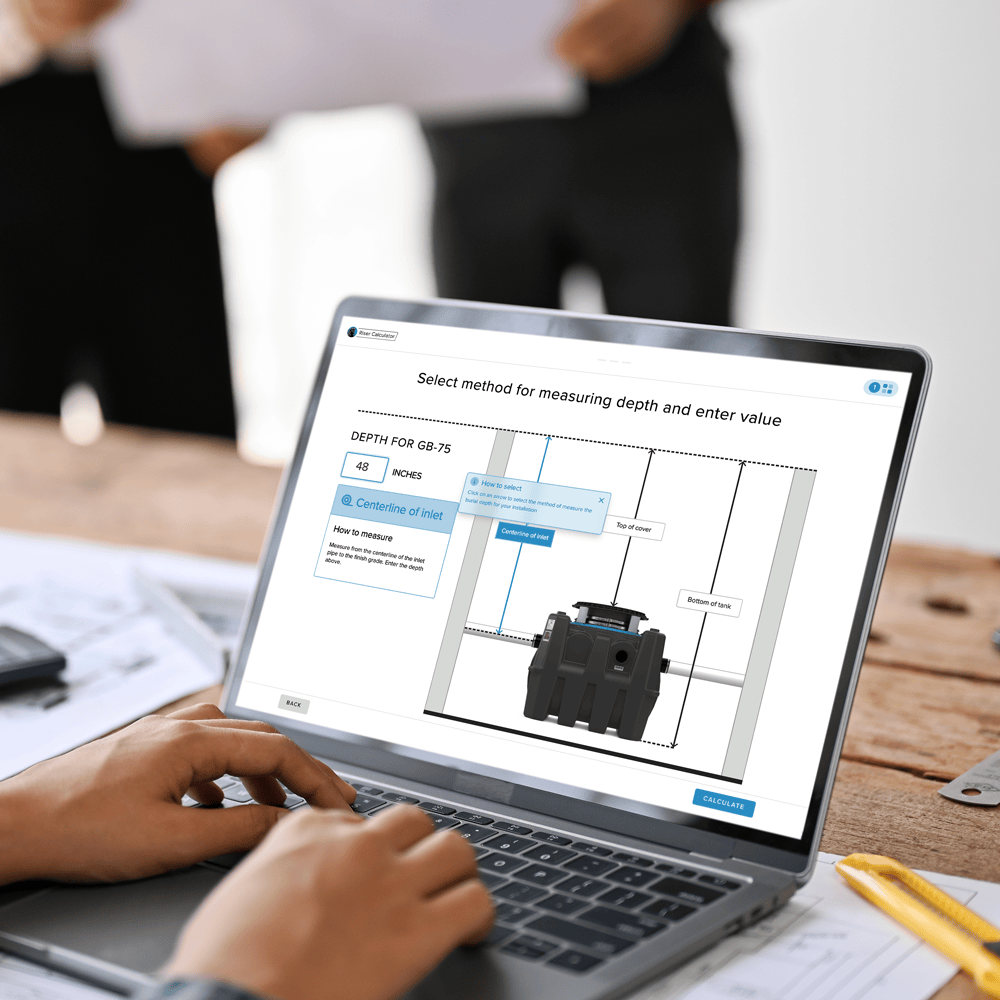

How do I calculate how many risers I need for Great Basin® indoor/outdoor units?

The adjustable cover adapters that ship with these units offer up to 5" of built-in riser height. When more is needed, each Fast Pitch® riser section provides an additional 5" in height. Use our resources here to calculate how many risers you need based on either the distance from the top of the buried tank or the centerline of the buried tank.

How many risers can be installed with a Great Basin® indoor/outdoor unit?

The maximum number of risers that can be used with a buried indoor/outdoor unit is 17 per manhole (87.5" maximum from top of tank).
